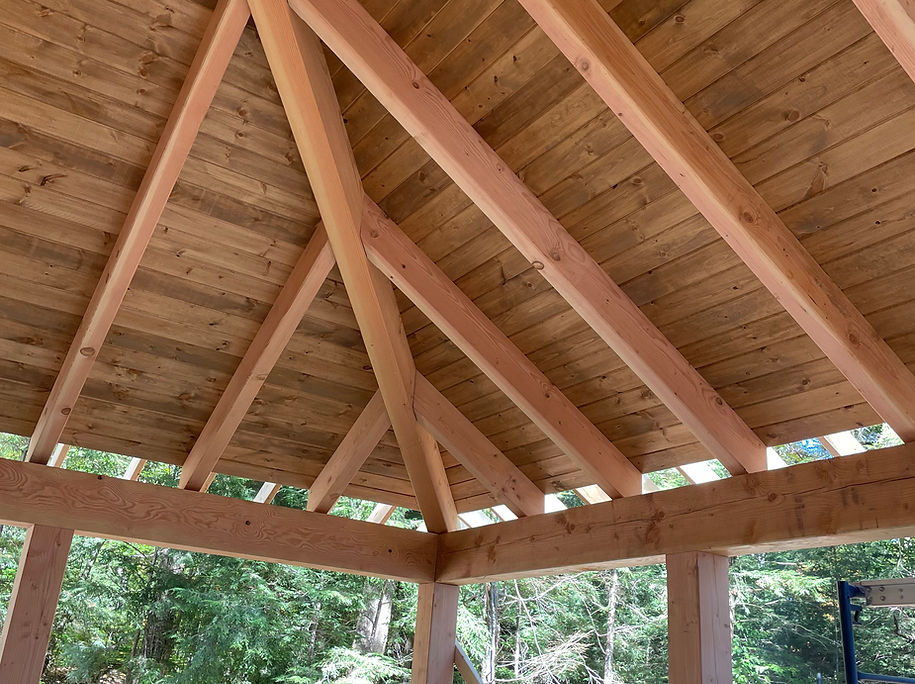

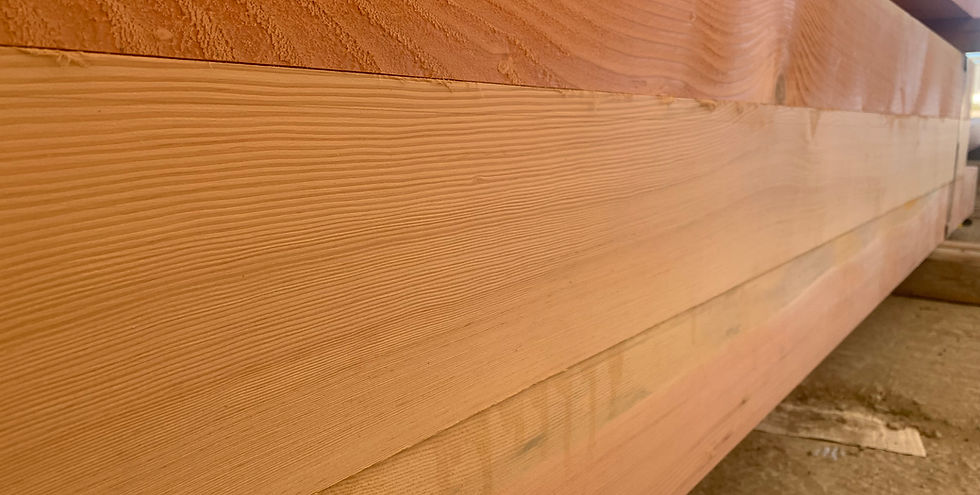

Douglas Fir

Dimensional lumber and timber frame Douglas Fir available up to 40' long. Can be custom cut, and sawn, as well as planed to various sizes in dimensions up to 16" x 24". Douglas Fir offers incredible structural support for it's size, and is light weight relative to it's strength.

White Pine

White Pine Timber is stocked year round and is prepared to order. Available in lengths up to 28'. Can be custom cut, and sawn, as well as planed to various sizes in dimensions up to 16" x 24".

Western Red Cedar

Western Red Cedar orders are prepared to order, and are available in lengths up to 24'. Can be custom cut, and sawn, as well as planed to various sizes in dimensions up to 16" x 24".

HEMLOCK

Hemlock timbers in 4x4x8', 4x6, 6x6x8'-16' and 8x8x16' and 20' and 10 x 10 x 20's are typically a stocked item in our yard. Hemlock is usually available only in rough cut and is a great economically priced timber for agricultural, industrial and landscaping uses.

Call to receive a quote and availability 705-878-5713

Pine Pergola built by David Holme_edited

White Pine Timber Outdoor Pergola

Post Bases and Pitzl Connectors

Adjustable Post Base Connectors

Adjustable Post Base Connectors

Post Base, height adjustable from 80 mm to 330 mm Bearing Plate @ top (wood): 100 mm x 100 mm x 10 mm thick, with four (4) pre-drilled holes Ø 12 mm Bearing Plate @ bottom (concrete/steel/...): 160 mm x 100 mm x 10 mm thick, with four (4) pre-drilled holes Ø 13 mm M30 all thread-rod 330 mm long ® ZiNiP - coated (see reverse) vertical design capacity (factored 1) + 88.6 kN / 19,918 lb uplift design capacity (factored 1) + 5.5 kN / 1,236 lb

Pitzl Post Base

Pitzl Post Base

Post Base, height adjustable from 141 mm to 210 mm Post Base, height adjustable from 141 mm to 210 mm vertical design capacity (factored 1) 98 kN / 22,031 lb uplift design capacity (factored 1) 21 kN / 4,721 lb

Adjustable Pitzl Post Base

Adjustable Pitzl Post Base

Post Base, height adjustable from 142 mm to 207 mm Bearing Plate @ top (wood): Ø 100 mm x 6 mm thick, with four (4) pre-drilled holes Ø 12 mm Bearing Plate @ bottom (concrete/steel/...): 160 mm x 100 mm x 6 mm thick, with four (4) pre-drilled holes Ø 13 mm M24 all thread-rod 65 mm long @ top and bottom vertical design capacity (factored 1)+ 62.3 kN / 14,005 lb uplift design capacity (factored 1) 7.4 kN / 1,663 lb

Pitzl HVP Connectors

Pitzl HVP Connectors

Pitzl HVP Connectors

Pitzl HVP

Pitzl HVP

Pitzl HVP Connectors

Pitzl

Pitzl
